Single Swing Door (3VP)

🏗️ Single Swing Door Revit Family – Fully Parametric, Customizable & BIM-Ready

Looking for a professional-grade Single Swing Door Revit Family that combines clean design, full parametric control, and seamless BIM integration?
This native Revit family is built from the ground up to empower architects, designers, and BIM professionals with unmatched flexibility, detailed realism, and effortless customization. Whether you’re designing residential interiors or commercial spaces, this door family will save you time while elevating the quality of your project

💎 Key Features of the Single Swing Door Revit Family:

✅ Multiple Leaf Styles – 5 Design Options Built In
Instantly switch between five professionally-designed door leaf styles directly from the Properties panel. From clean flush panels to vertically and horizontally grooved options, you’ll find the perfect fit for any interior concept.

🔄 Flexible Handle Configurations

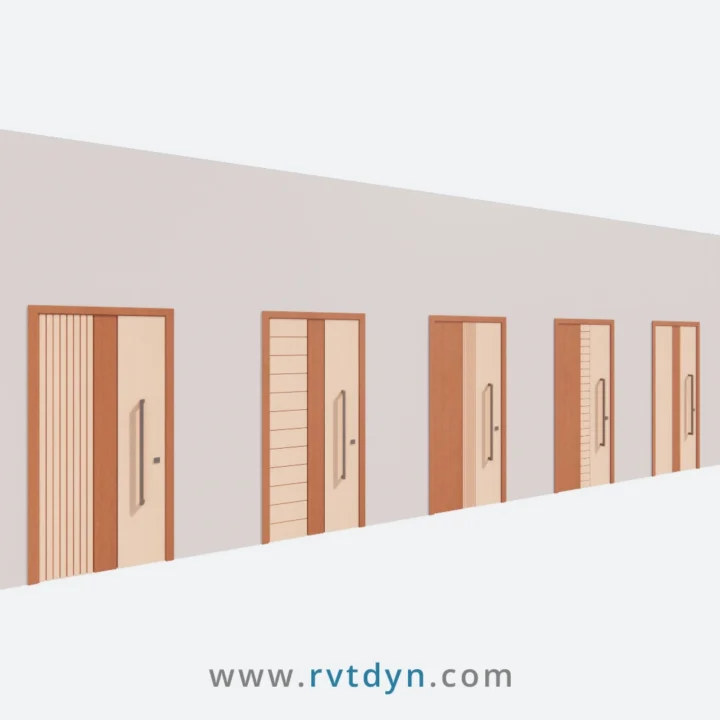

Choose from multiple handle types—including standard and square bar—to match your desired look and functionality.

🧩 Fully Parametric Components
Every element in this Single Swing Door Revit Family is parametric, giving you total control over dimensions, appearance, and placement.

🎨 Material Customization Made Easy
Easily assign your own materials to the door leaf, frame, and handle for full visual consistency across your Revit project.

👁️ Smart 2D & 3D Animation Behavior

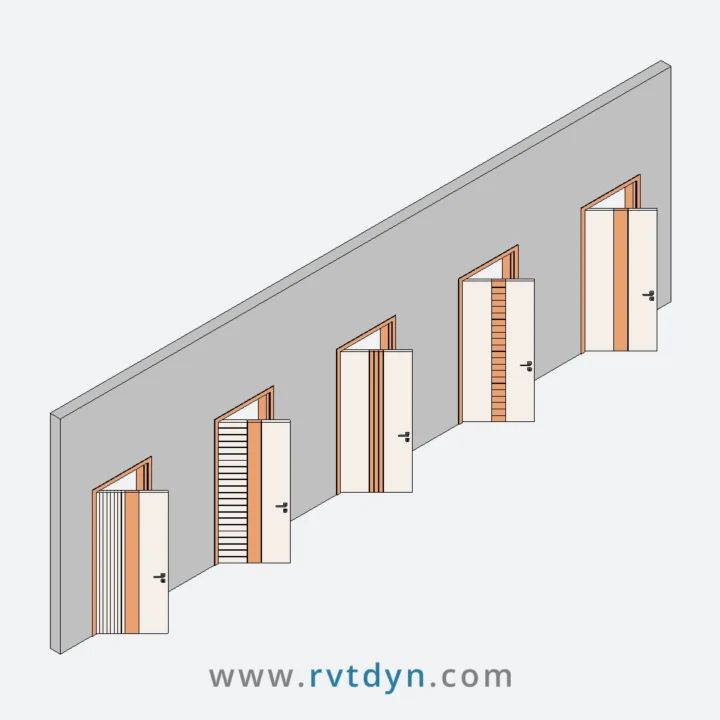

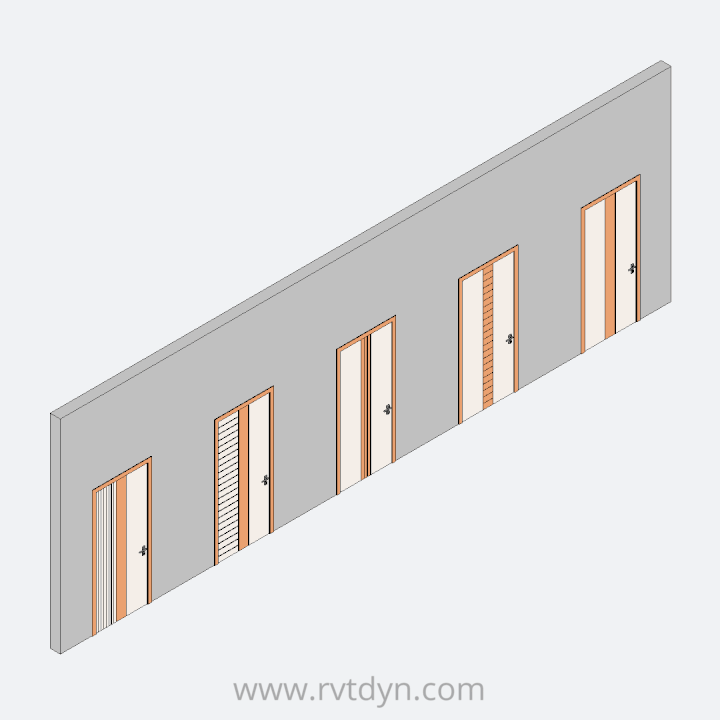

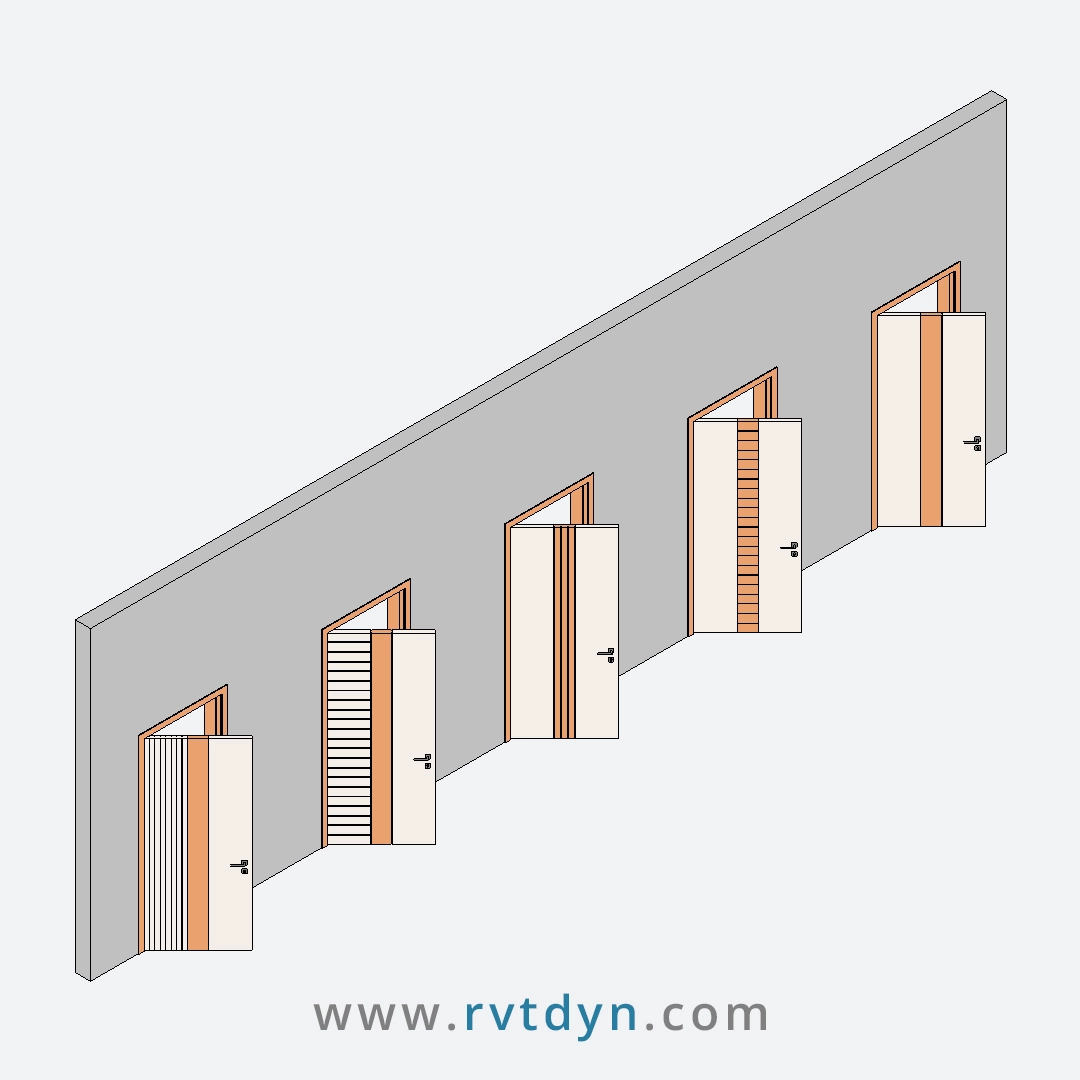

The door opens and closes dynamically in both 2D floor plans and 3D views, making your presentations and walkthroughs more realistic and engaging

📐 Specifications:

Door Type:
Single Swing

Main Leaf Design:
Three Vertical Panels (3VP)

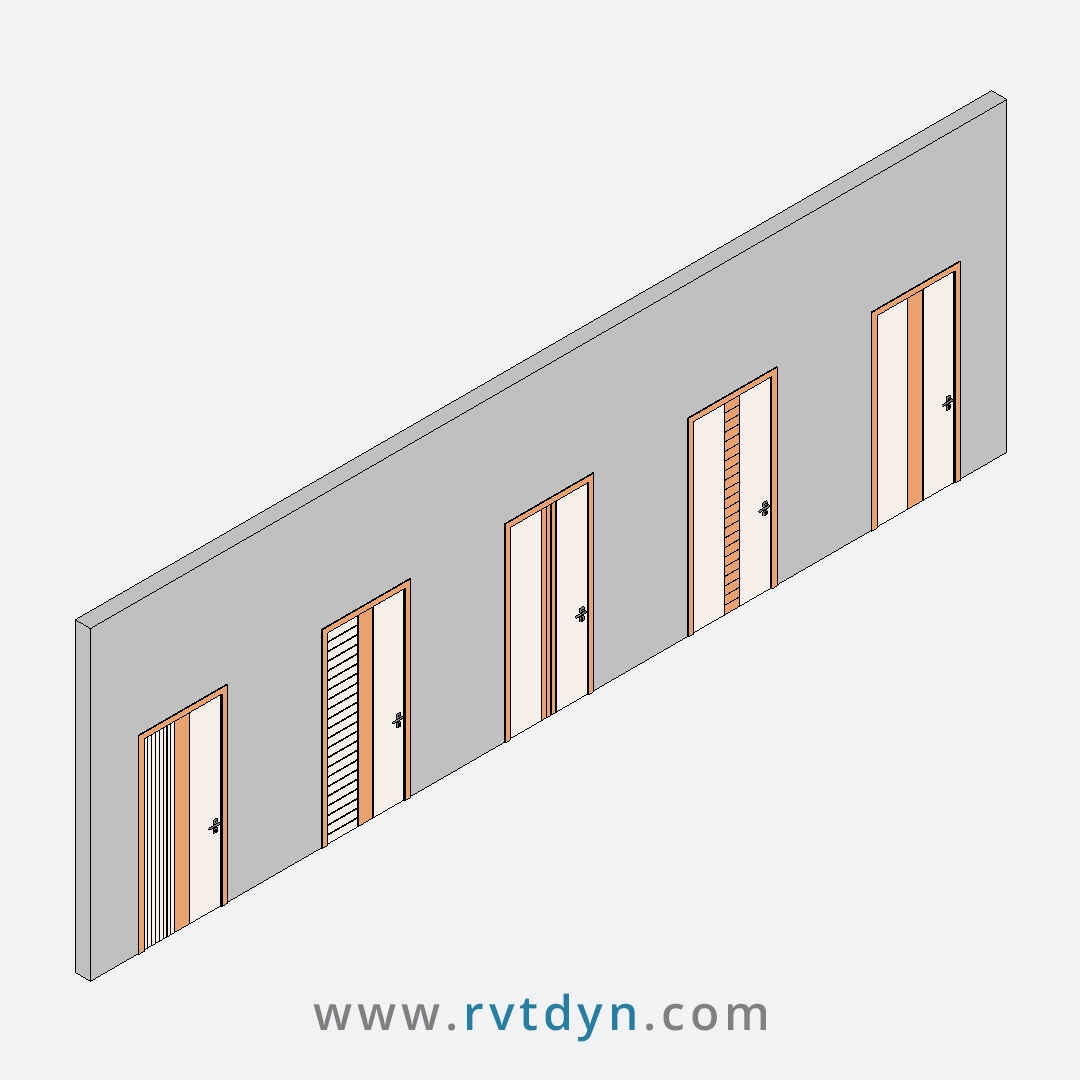

Leaf Types:

1. Flush
2. Flush + Flush + Horizontal Grooves
3. Flush + Horizontal Grooves + Flush
4. Flush + Flush + Vertical Grooves
5. Flush + Vertical Grooves + Flush

Available Sizes (Clear Opening):

• 70 x 240 cm
• 90 x 240 cm
• 100 x 240 cm
• 120 x 240 cm

(Custom sizes can be created based on your project needs.)

Frame Type:

• Standard

Handle Types:

• Standard
• Square Bar

💡 Why Choose the Single Swing Door Revit Family?

Save time with a native, fully parametric Revit door family built for speed and flexibility. Customize materials, dimensions, and handle styles to fit any project—residential or commercial. Professional results with clean visuals and interactive 2D/3D behavior—every time

🛠️ Technical Details:

• Revit Version: 2018
• Units: Metric
