Linear Voids (Wall Grooves)

🔳 Linear Wall Grooves – Parametric Revit Family

Add a layer of architectural sophistication and tactile depth to your Revit walls with this Parametric Wall Grooves family. Designed for seamless integration, these Wall Grooves allow you to carve elegant, rhythmic void patterns directly into wall elements — all natively within Revit. With full parametric control and five unique groove profiles, this tool transforms ordinary surfaces into standout architectural features using customizable Wall Grooves tailored to your design vision.

💎 Key Features:

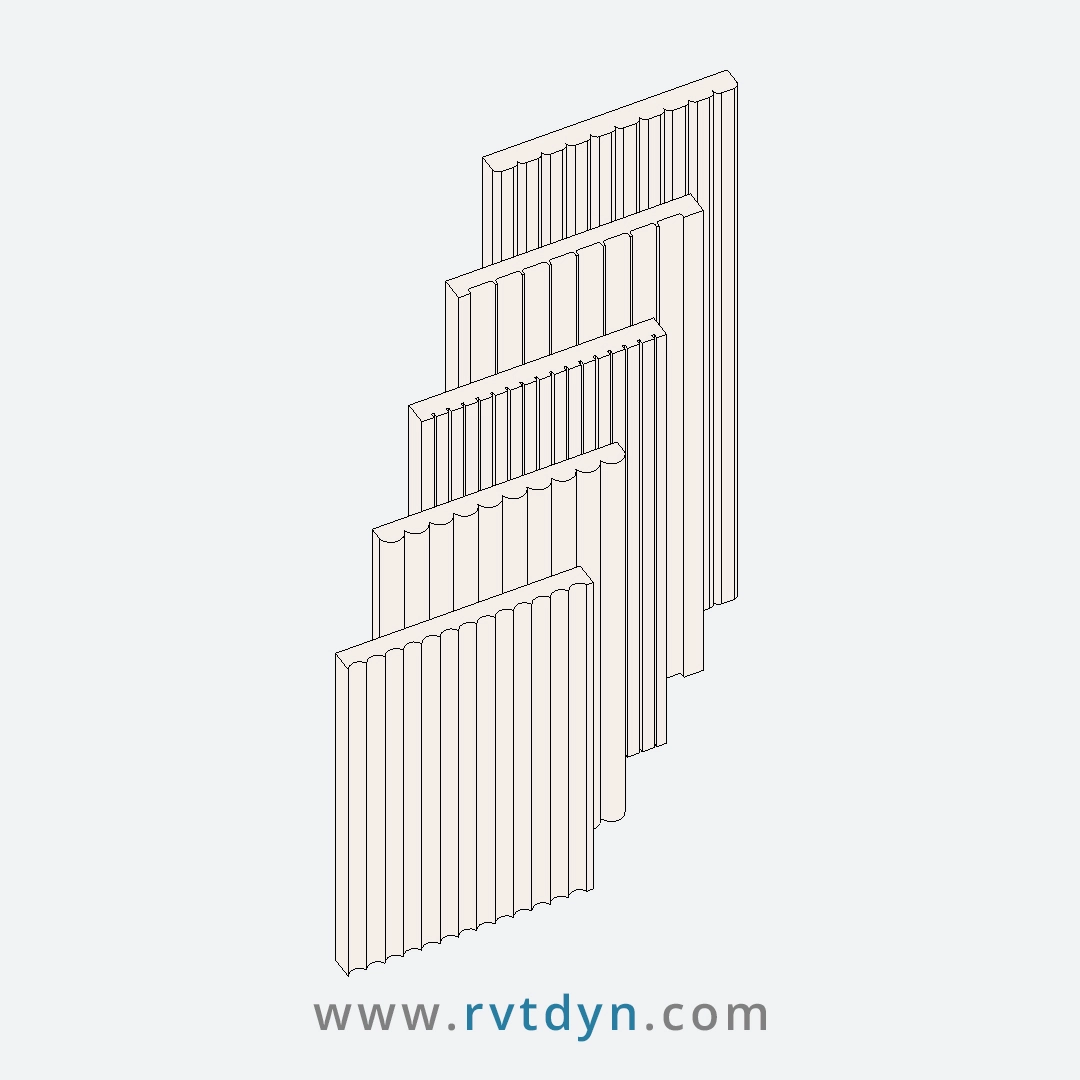

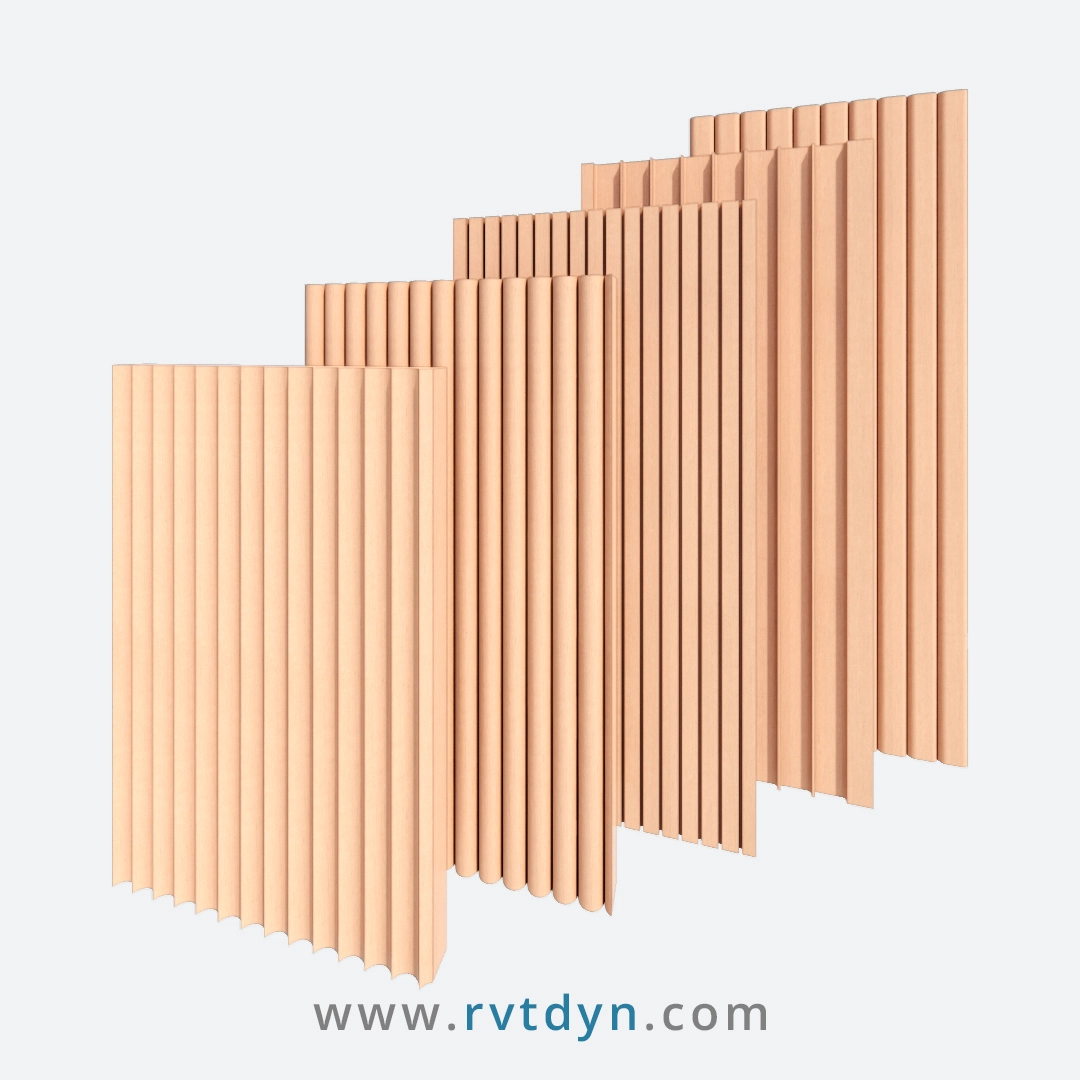

• 🧱 5 Distinct Groove Profiles

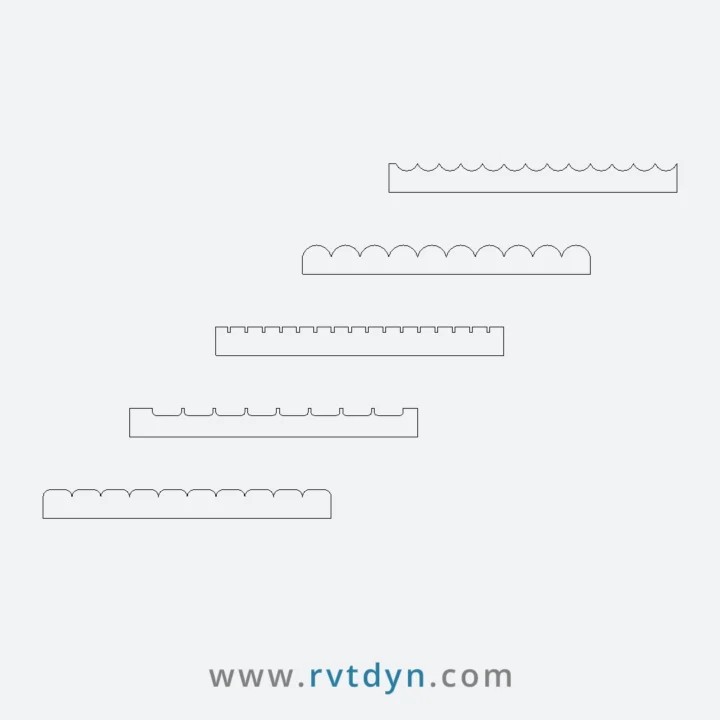

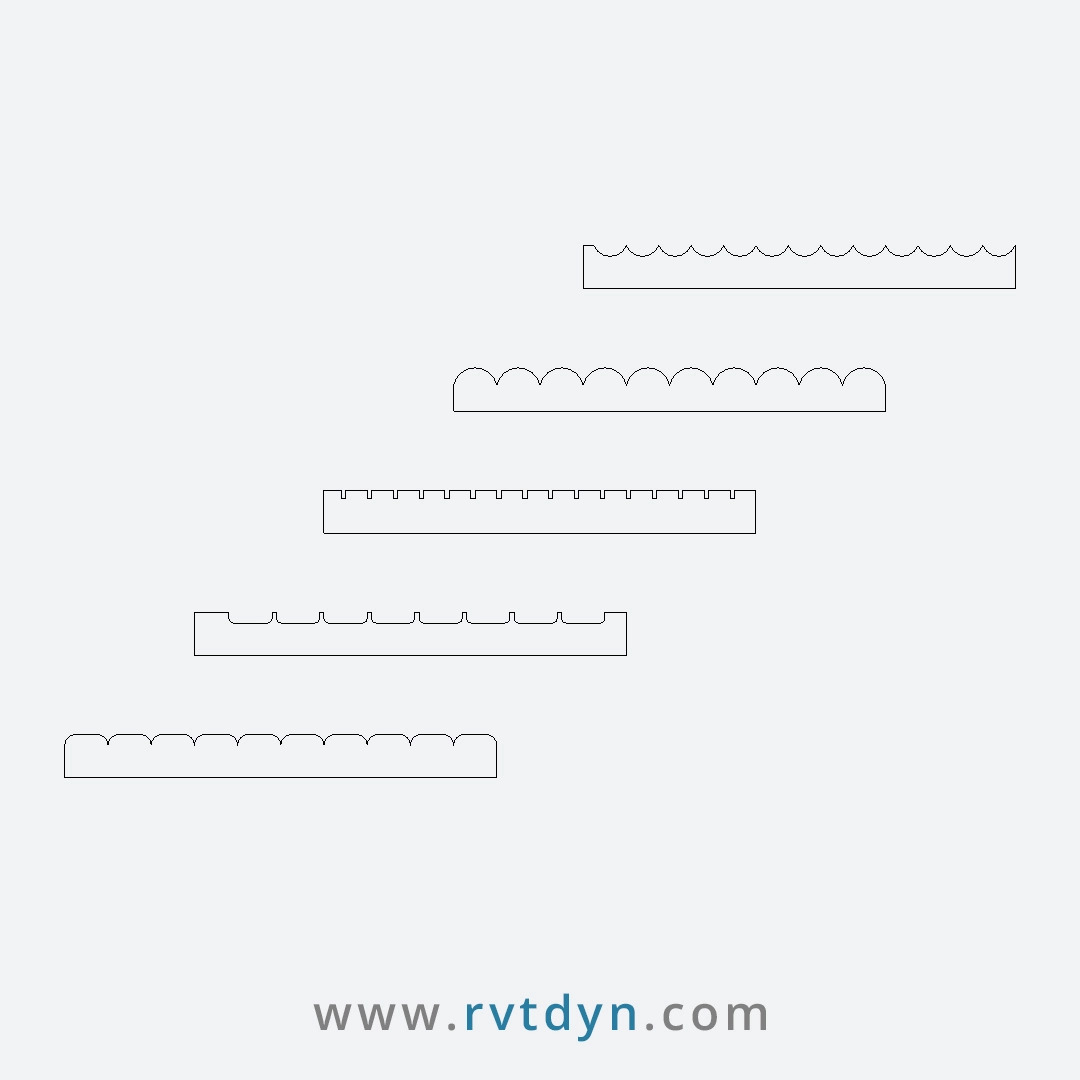

  Choose from five unique groove shapes (rounded, squared, scalloped, etc.), each offering a different aesthetic impact — switch easily via the Type Properties panel.
• 📐 Parametric Control Over All Dimensions
  Adjust groove depth, width, spacing, and count directly in the instance parameters, giving you full flexibility over design detail and performance.
• 🔁 Wall-Based Placement

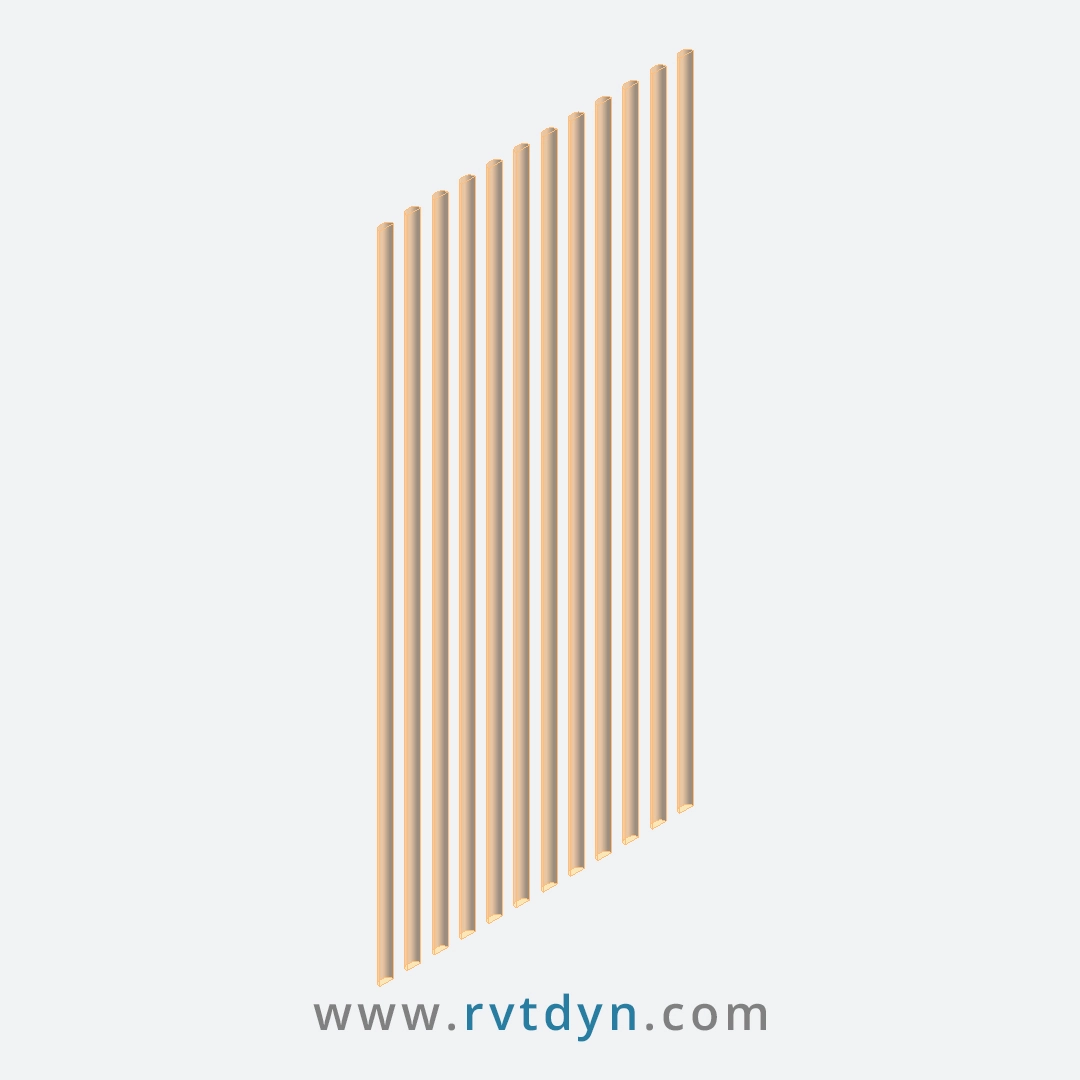

  This family is wall-hosted and void-based, meaning it subtracts geometry from existing Revit walls with perfect alignment — ideal for modern facades, feature walls, or interior detailing.
• 🎨 Material-Independent & Lightweight
  Since it utilizes voids rather than solids, it maintains low file size and works seamlessly with any wall material, keeping your model clean and optimized.
• 🛠️ Realistic Geometry + Simplified Representation
  Includes both full 3D grooves and 2D symbolic profile representations to balance design accuracy with performance.

📐 Product Specifications:

• Groove Profiles: 5 types (custom switchable by type)
• Placement Type: Wall-hosted void family
• Customization Parameters:
• Groove Width
• Groove Depth
• Groove Count (repetition)
• Groove Spacing
• Supported Views: 3D, Plan, Elevation

💡 Why Choose This Revit Family?

Whether you’re designing a bold modern elevation or a subtle decorative wall treatment, this parametric groove family brings your design to life — with professional precision and effortless control. Ideal for architects, interior designers, and BIM professionals seeking high-quality detailing without compromising model performance.

🛠️ Technical Details:

• Revit Version: 2018
• Units: Metric
