🔳 Linear Grooved Panel (Slatted) – Parametric Revit Family
Achieve elegant, consistent rhythm in your Revit models with this Linear Grooved Panel — a fully parametric, standalone slatted panel designed to enhance modern interiors with visual depth and precision.
Perfect for feature walls, acoustic cladding, and refined vertical detailing, this Linear Grooved Panel gives designers complete control over groove dimensions while maintaining clean geometry and modeling efficiency.
Crafted as a native Revit family, the Linear Grooved Panel integrates effortlessly into your workflow, whether used in partitions, decorative elements, or minimalist surface treatments
💎 Key Features:
- 📏 Fully parametric: control groove width, depth, spacing, and count
- 🎨 Material parameter included: apply any finish seamlessly
- 🧱 Standalone family – no host required
- ⚙️ Lightweight geometry for optimized performance

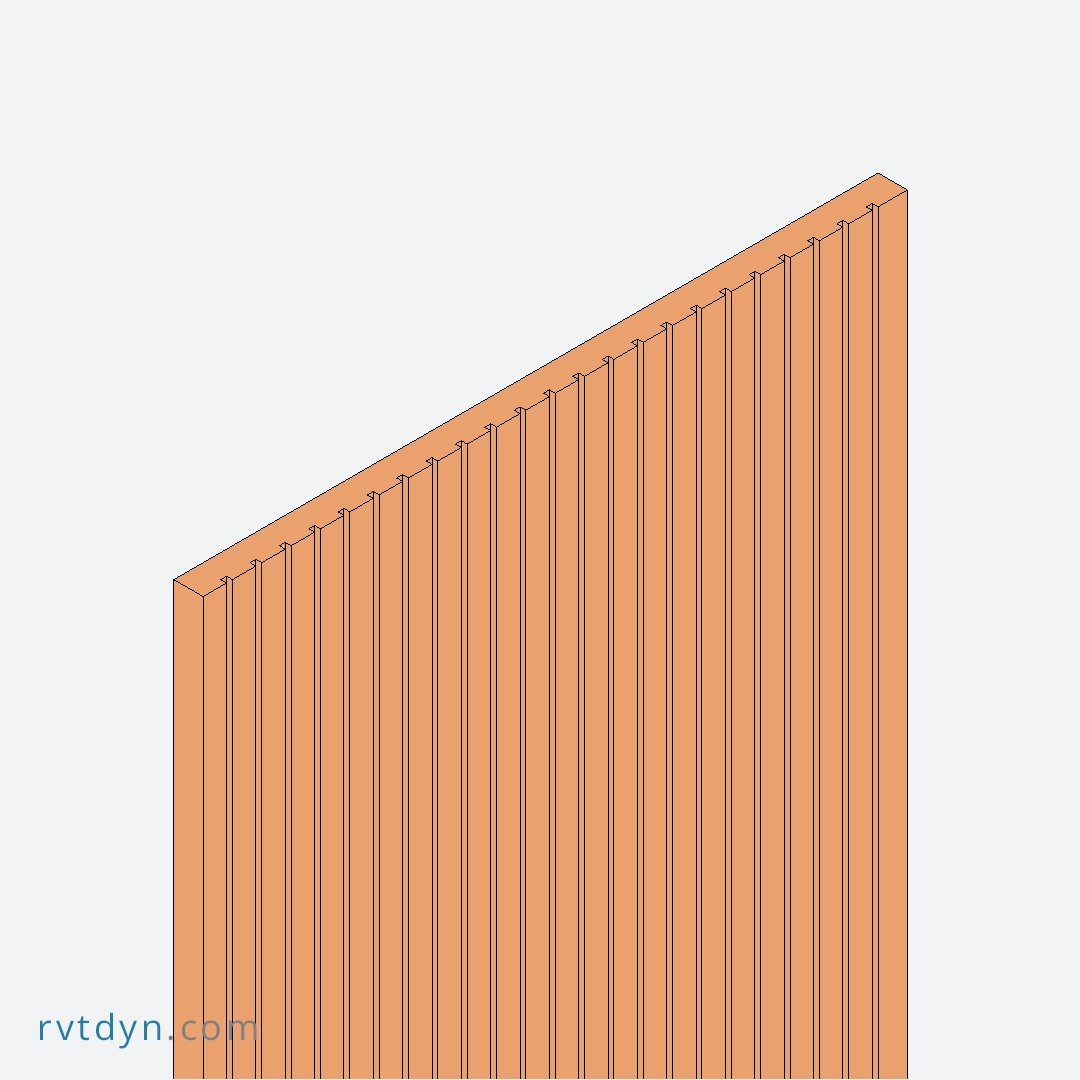

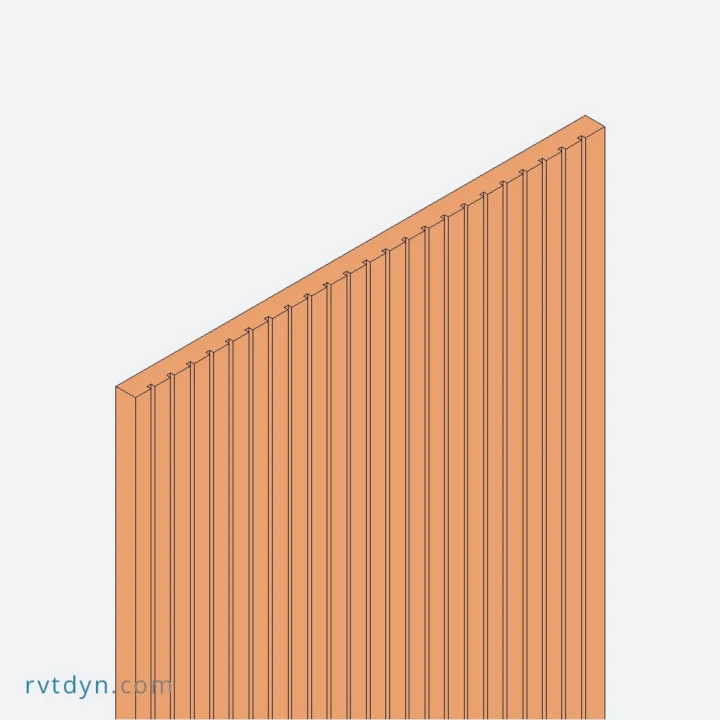

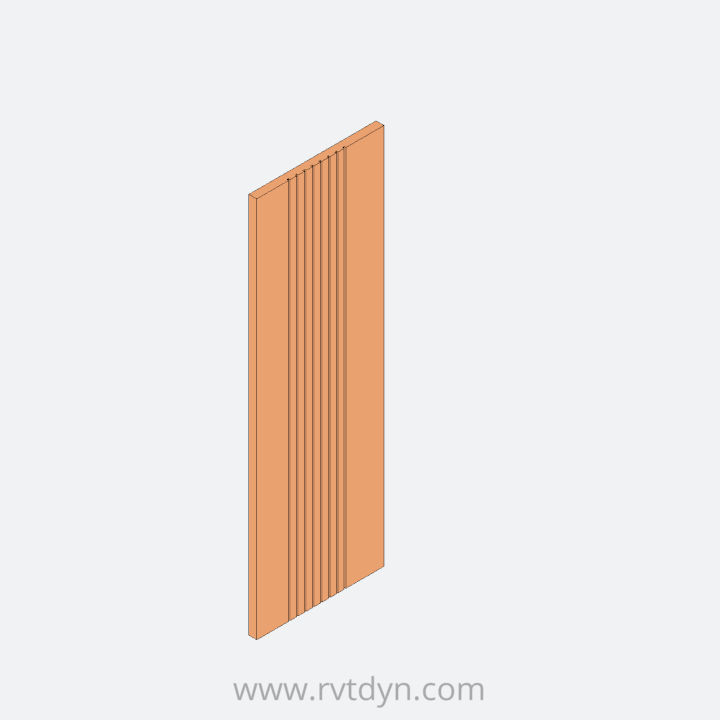

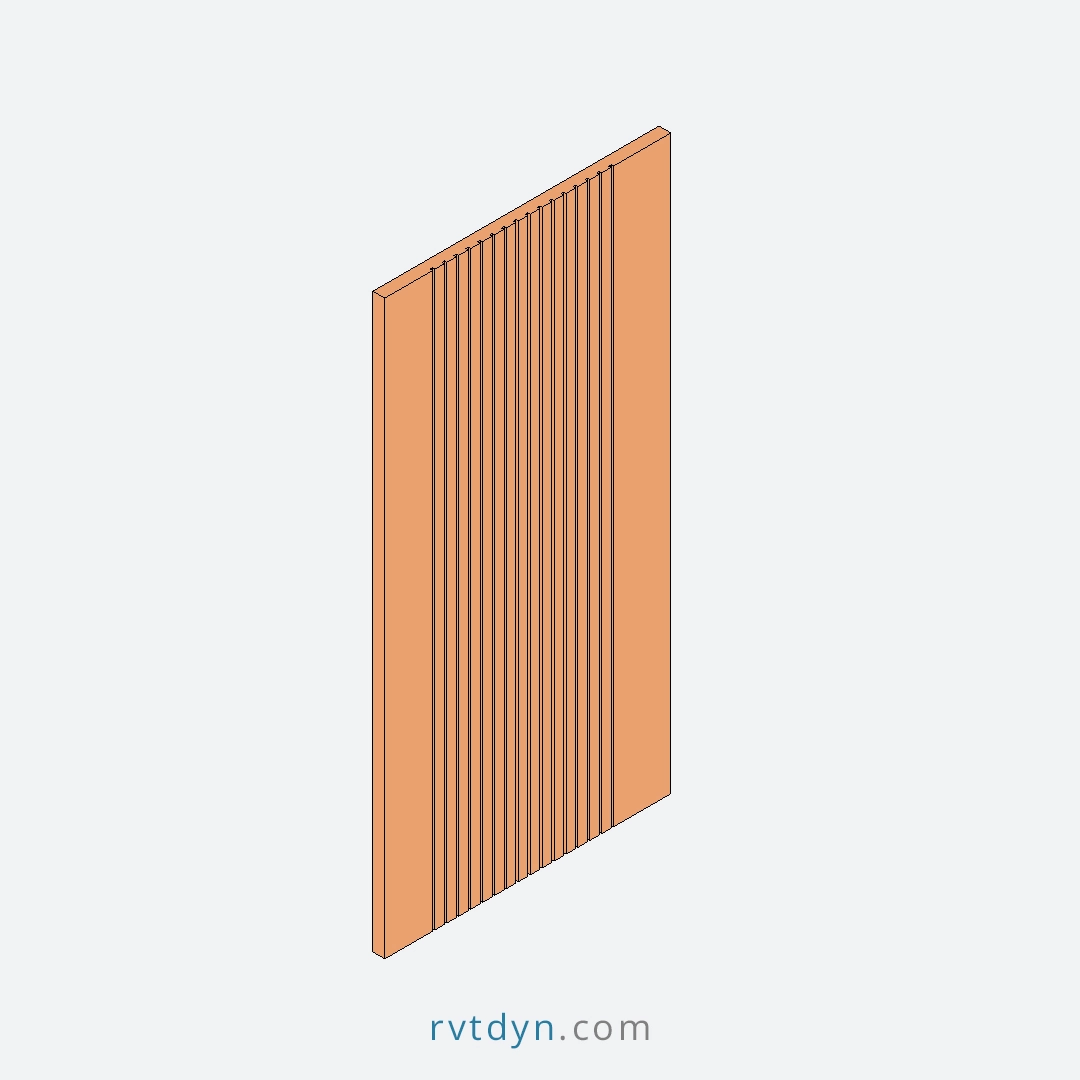

- 🖼️ Clean 3D geometry visible in all views (plan, section, elevation)
📐 Specifications:
- Groove Orientation: Vertical
- Placement: Freestanding (non-hosted)
- Material Control: Yes
- View Compatibility: 3D, Plan, Elevation
- Placement Method: Line-based — similar to wall creation
🛠️ Technical Details:
- Revit Version: 2018
- Units: Metric
