Double Swing Door (3VP)

Double Swing Revit Door Family – Fully Parametric & Customizable

Original price was: $29.00.Current price is: $25.00.

Categories: , Tag:

🏗️ Double Swing Revit Door Family – Fully Parametric & Customizable

This Double Swing Revit Door Family is designed from the ground up to seamlessly integrate with your architectural and interior projects, this high-quality single-swing door family delivers maximum flexibility, rich visual detail, and practical functionality.

💎 Family Features:

Multi-Type Door Leaves:
Easily switch between five distinct door leaf types directly from the properties panel to suit your design preferences and project requirements.
And since this is a double swing door, you can independently assign a different type to each leaf—unlocking up to 25 unique door style combinations for maximum design flexibility.

Customizable Door Handles:
Choose from a variety of handle types to complement your door’s aesthetic and functionality.

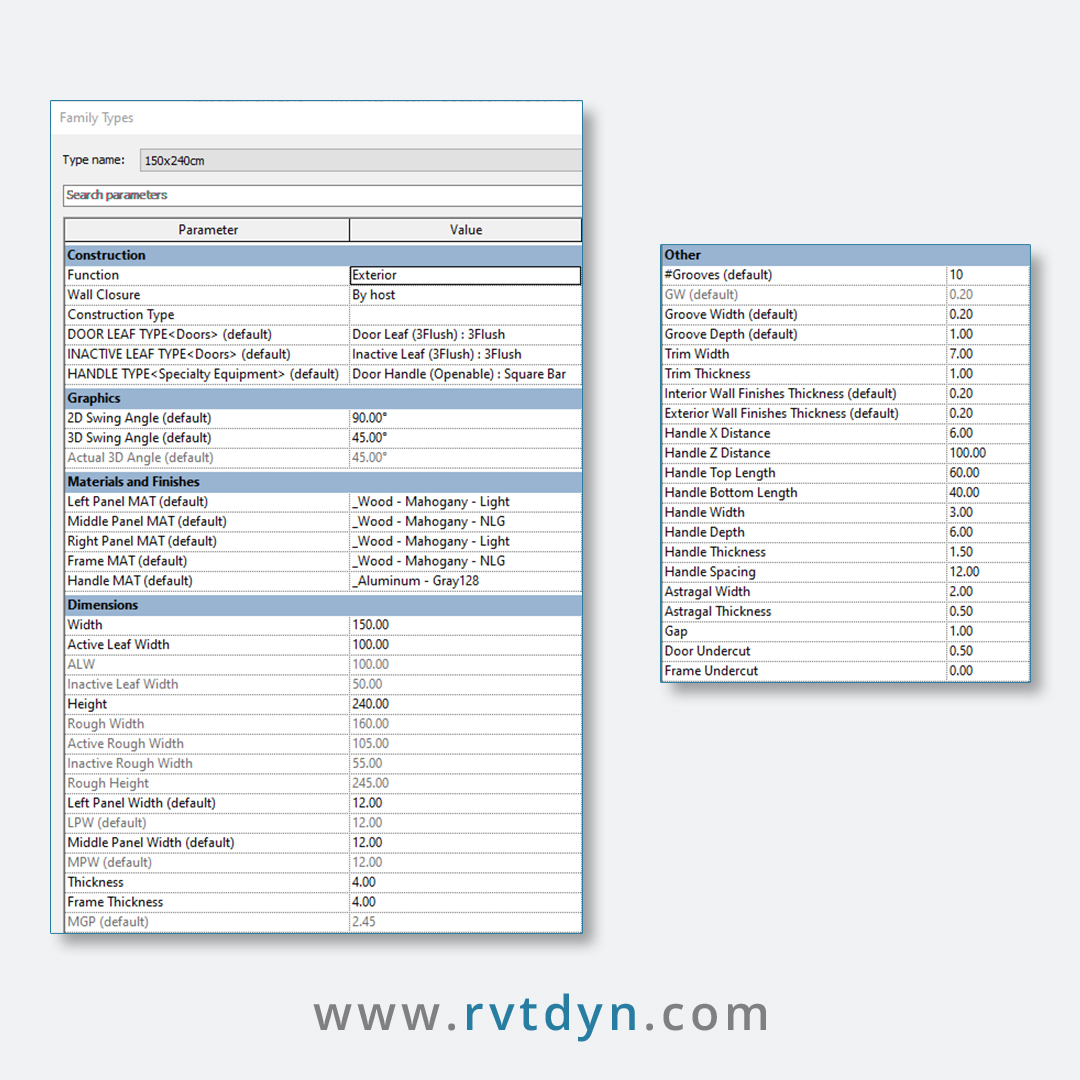

Parametric Flexibility:
All components in this Revit door family are parametric, allowing for full flexibility in your design workflow.

Material Flexibility:
All family components are fully customizable in terms of materials, allowing you to precisely adapt them to your project’s needs.

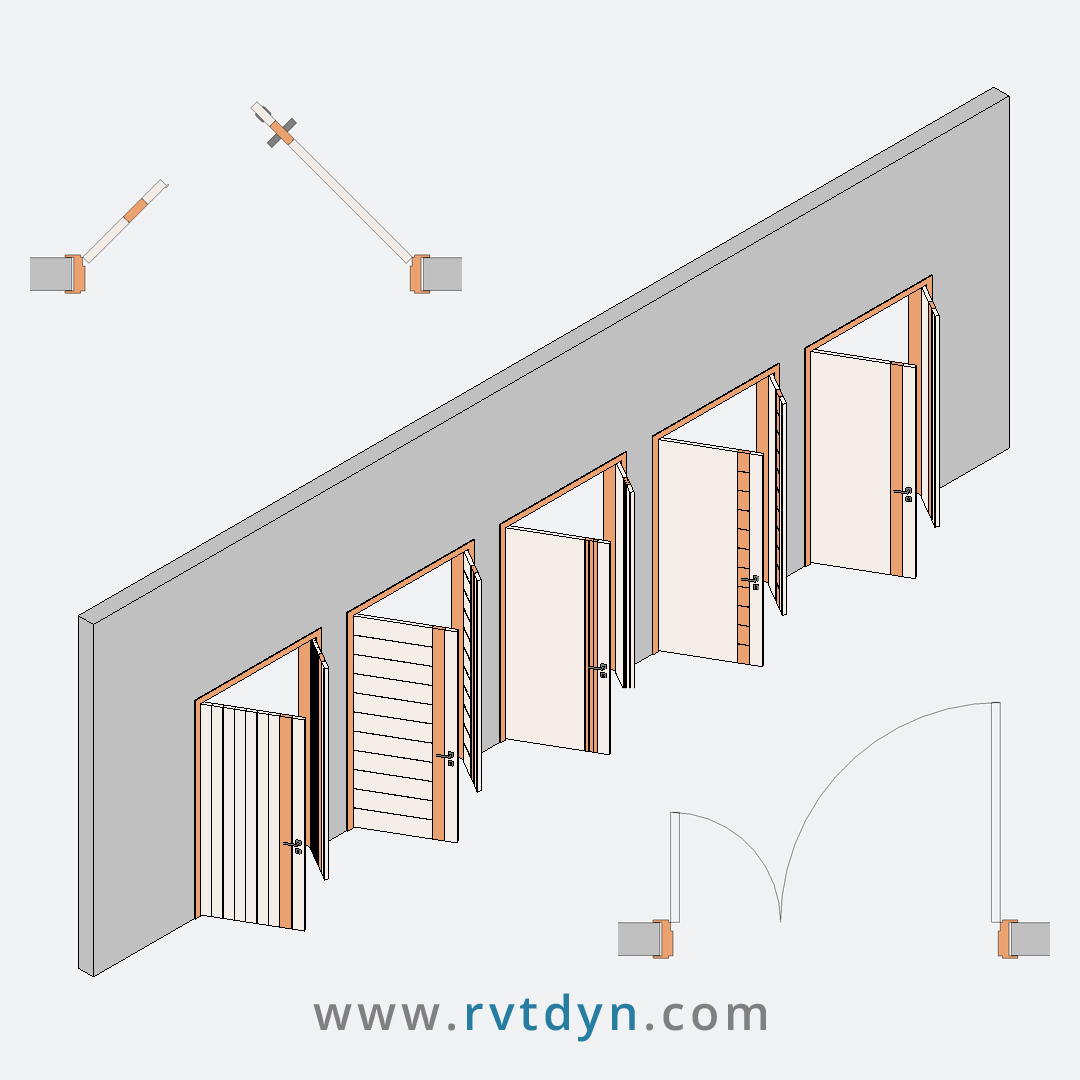

Interactive 2D & 3D Behavior:
Doors open and close interactively in both 2D floor plans and 3D views, enhancing your project’s realism and presentation.

📐 Specifications:

Door Type:
Double Swing

Main Leaf Design:
Three Vertical Panels (3VP)

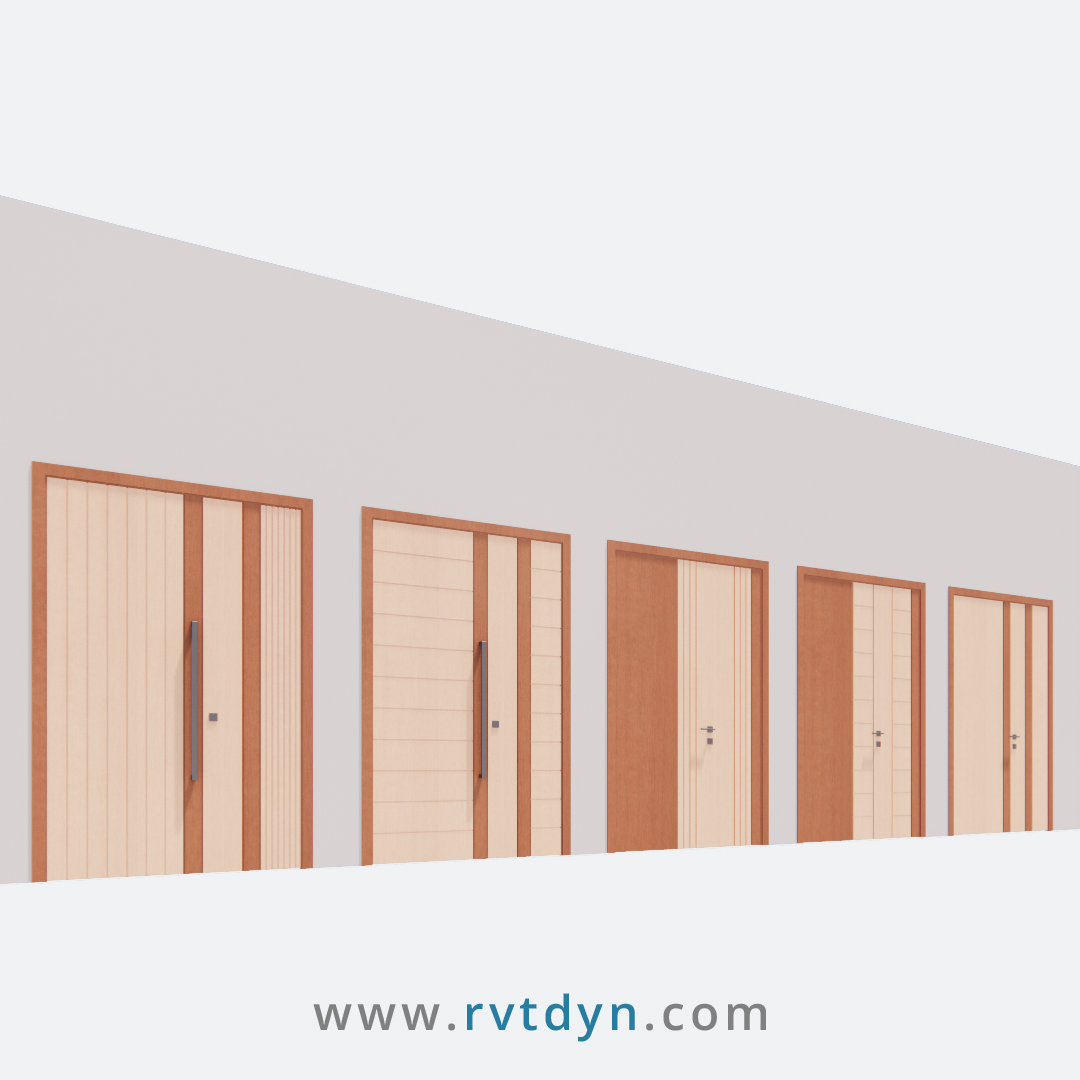

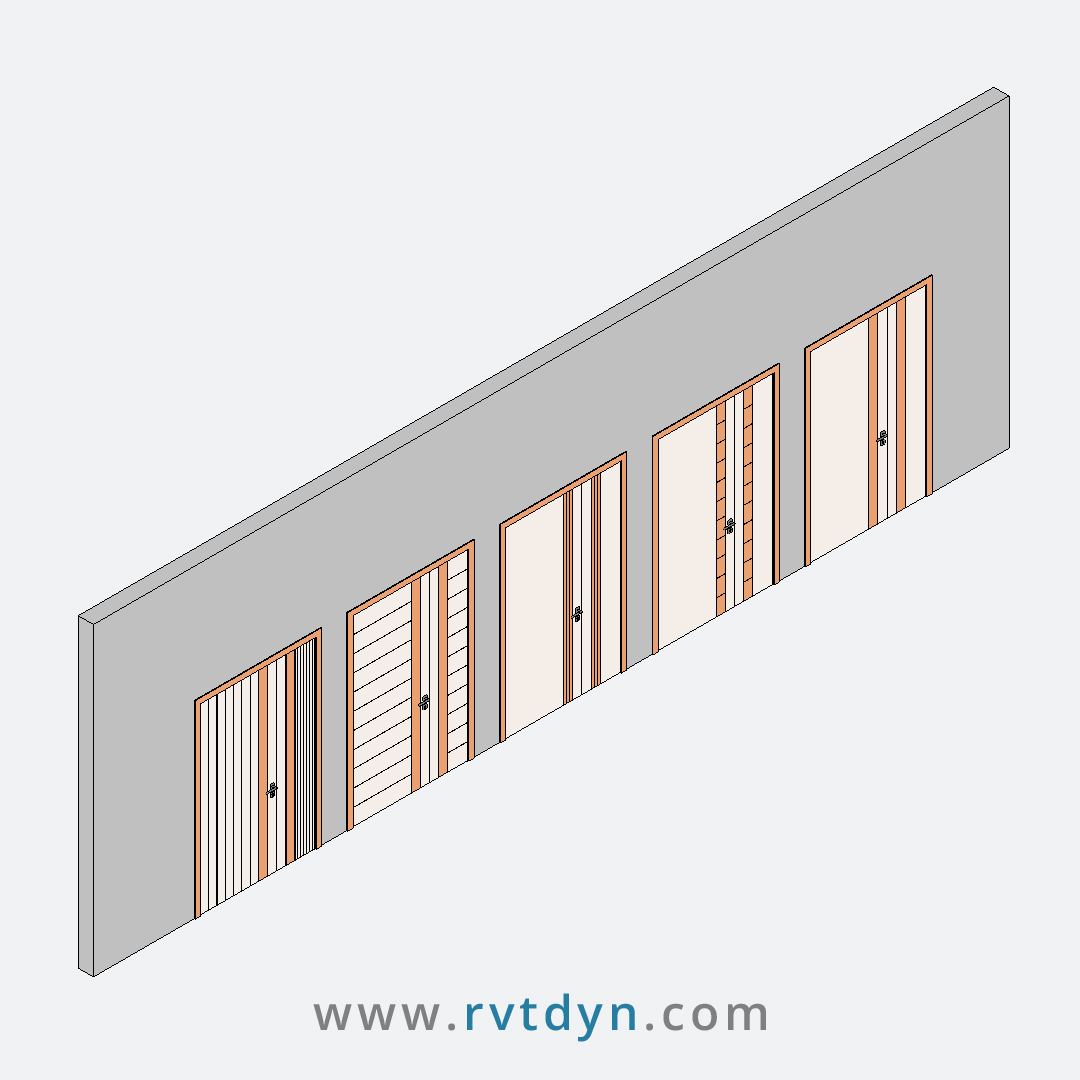

Leaf Types:

  1. Flush
  2. Flush + Flush + Horizontal Grooves
  3. Flush + Horizontal Grooves + Flush
  4. Flush + Flush + Vertical Grooves
  5. Flush + Vertical Grooves + Flush

Predefined Door Sizes (clear opening):

  • 150 x 240 cm – (100+50) x240cm

(Custom sizes can be created based on your project needs.)

Frame Type:

  • Standard

Handle Types:

  • Standard
  • Square Bar

💡 Why Choose This Door Family?

Efficient, flexible, native, and fully parametric — this door family is easy to use and helps you save time while delivering professional results in any Revit project.

🛠️ Technical Details:

  • Revit Version: 2018
  • Units: Metric

If you encounter any issues while using this product, don’t hesitate to contact us 📩
You can also reach out if you need a custom architectural Revit family — we’re happy to help.
