3D Pattern – 10-Fold Rosette (W80) | Revit Family
Elevate your design with this elegant and lightweight 3D Pattern Revit family — crafted for architects and BIM professionals who value precision and cultural depth. This 3D Pattern features a refined 10-fold rosette design and is ideal for decorative screens, architectural façades, and interior dividers. Delivered in seven pre-made sizes, each 3D Pattern panel is optimized for seamless integration into Revit workflows. Whether you’re enhancing interiors or exterior elevations, this 3D Pattern adds clarity, depth, and timeless charm to your project
Key Features:
Seven Ready-to-Use Sizes

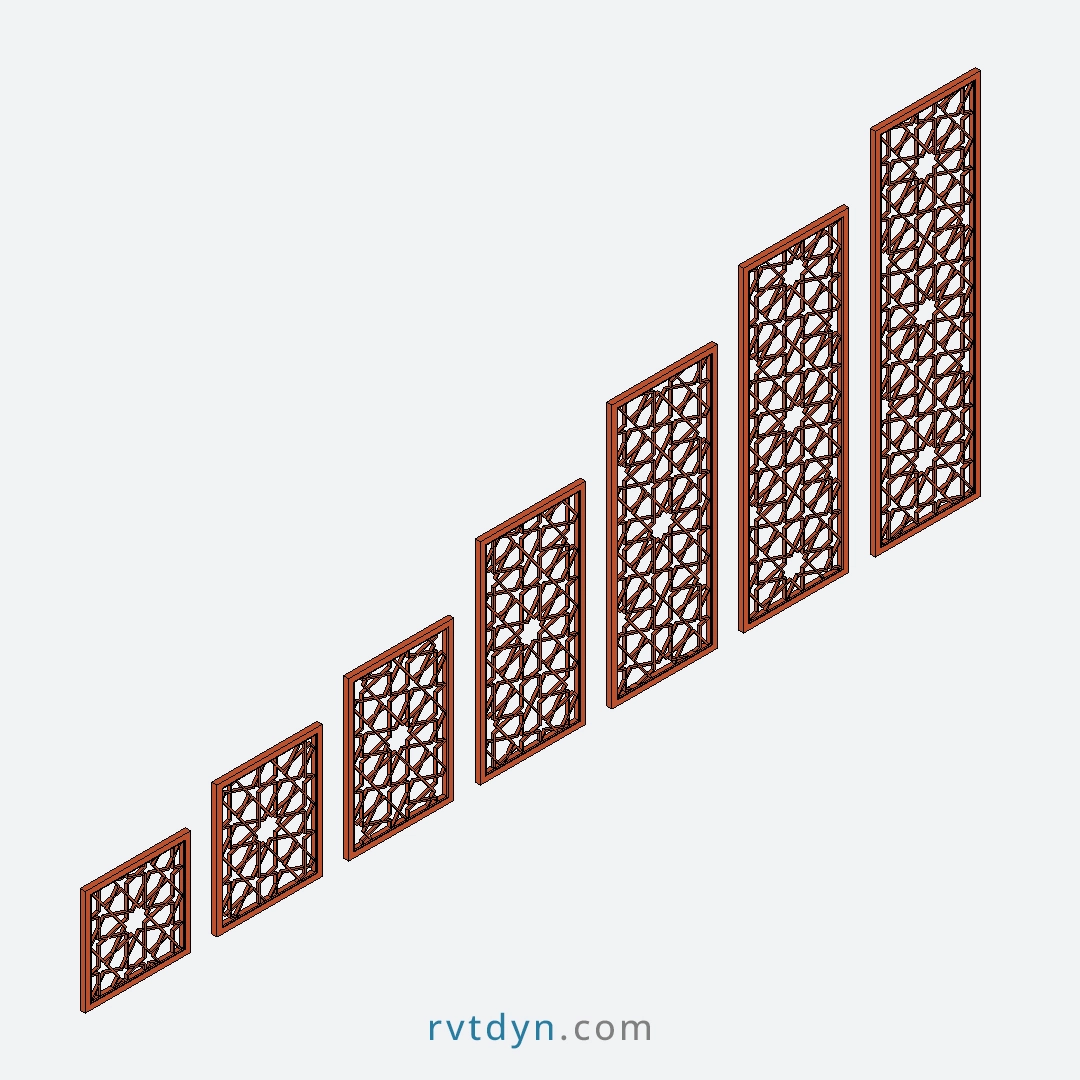

All panels share a fixed width of 80 cm, with varying heights to suit different applications:

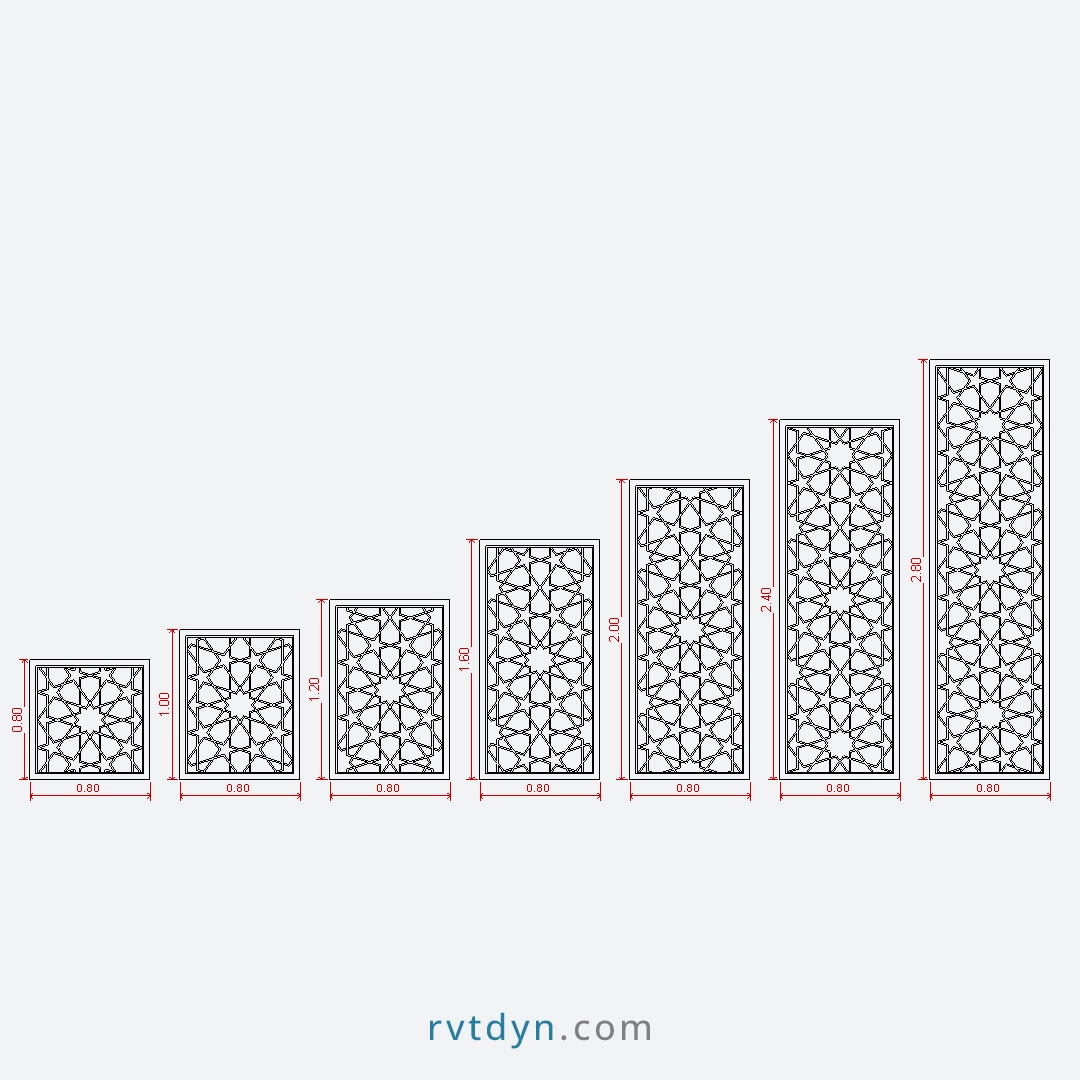

80×80, 80×100, 80×120, 80×160, 80×200, 80×240, 80×280 cm.
Optional Frame Visibility
Turn the frame on or off using a dedicated visibility parameter, allowing for clean pattern tiling across large surfaces.
– Frame Width: 5 cm
– Frame Thickness: 4 cm

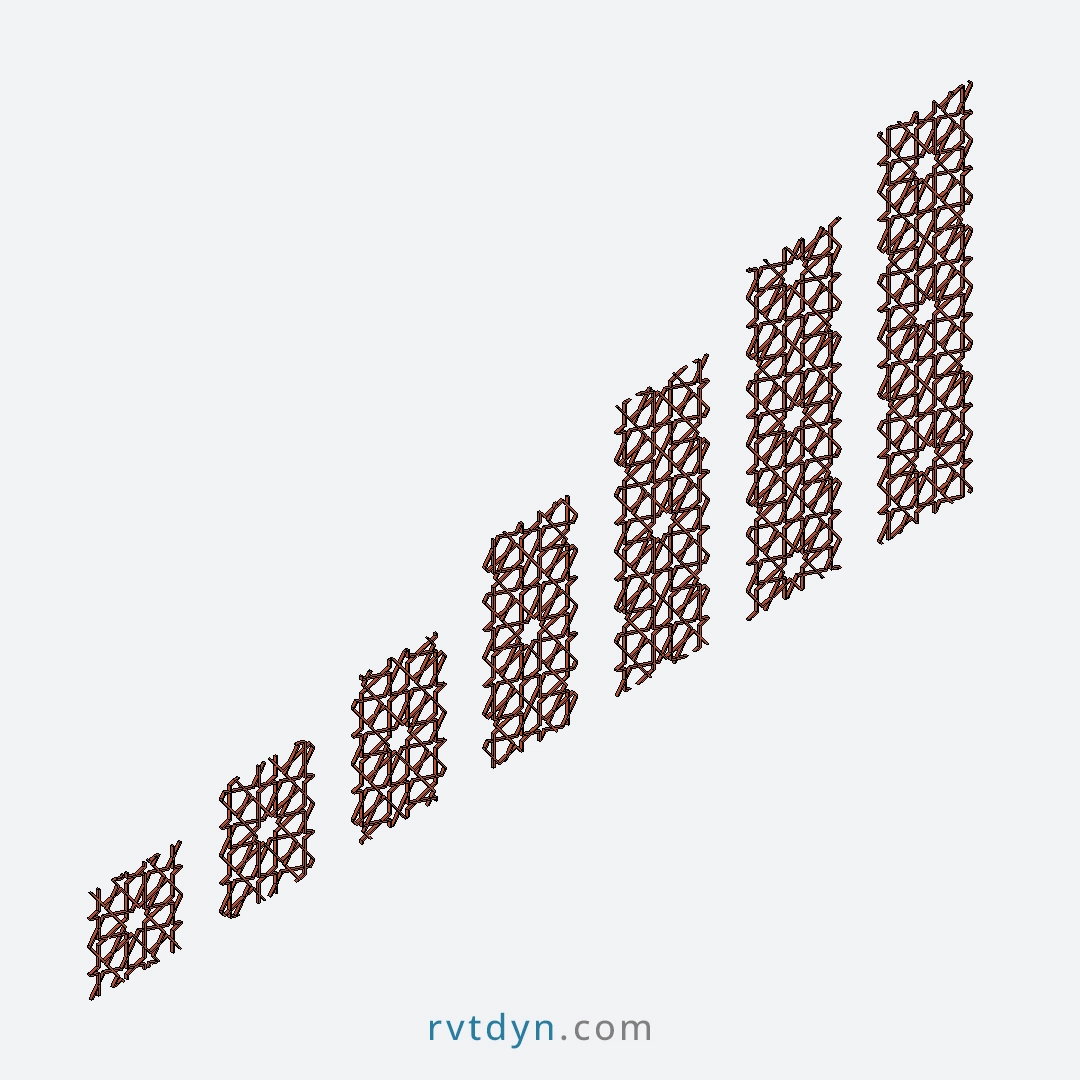

Crisp Pattern Detailing
Designed for visual clarity and realism:
– Pattern Segment Width: 1 cm
– Pattern Segment Thickness: 2 cm
Custom Materials
Both the frame and pattern elements support full material replacement. Apply wood, metal, or any material from your Revit library.
Fully Native & Lightweight
Modeled natively in Revit to ensure high performance, clean geometry, and version compatibility — ideal for professional projects.
Product Specifications:
- Panel Sizes: 7 total (Height: 80–280 cm)
- Fixed Width: 80 cm
- Frame Width: 5 cm
- Frame Thickness: 4 cm
- Pattern Width: 1 cm
- Pattern Thickness: 2 cm
- Frame Visibility: Toggle via parameter
- Material Customization: Yes (frame + pattern)
- Pattern Type: 10-Fold Rosette
Why Choose This Pattern?
Instantly elevate the visual appeal of your Revit designs
Flexible for use in screens, panels, facades, and dividers
Need a specific size?
Contact us — we offer custom dimensions upon request.
Technical Details:
- Revit Version: 2018
- Units: Metric
Need Help or More Options:
Having trouble using this family? Contact us anytime — we’re happy to help!
Need a specific Revit family? We also offer custom Revit family creation tailored to your project needs.
Looking for more families? Browse our full collection of Revit Families and boost your Revit workflow.
